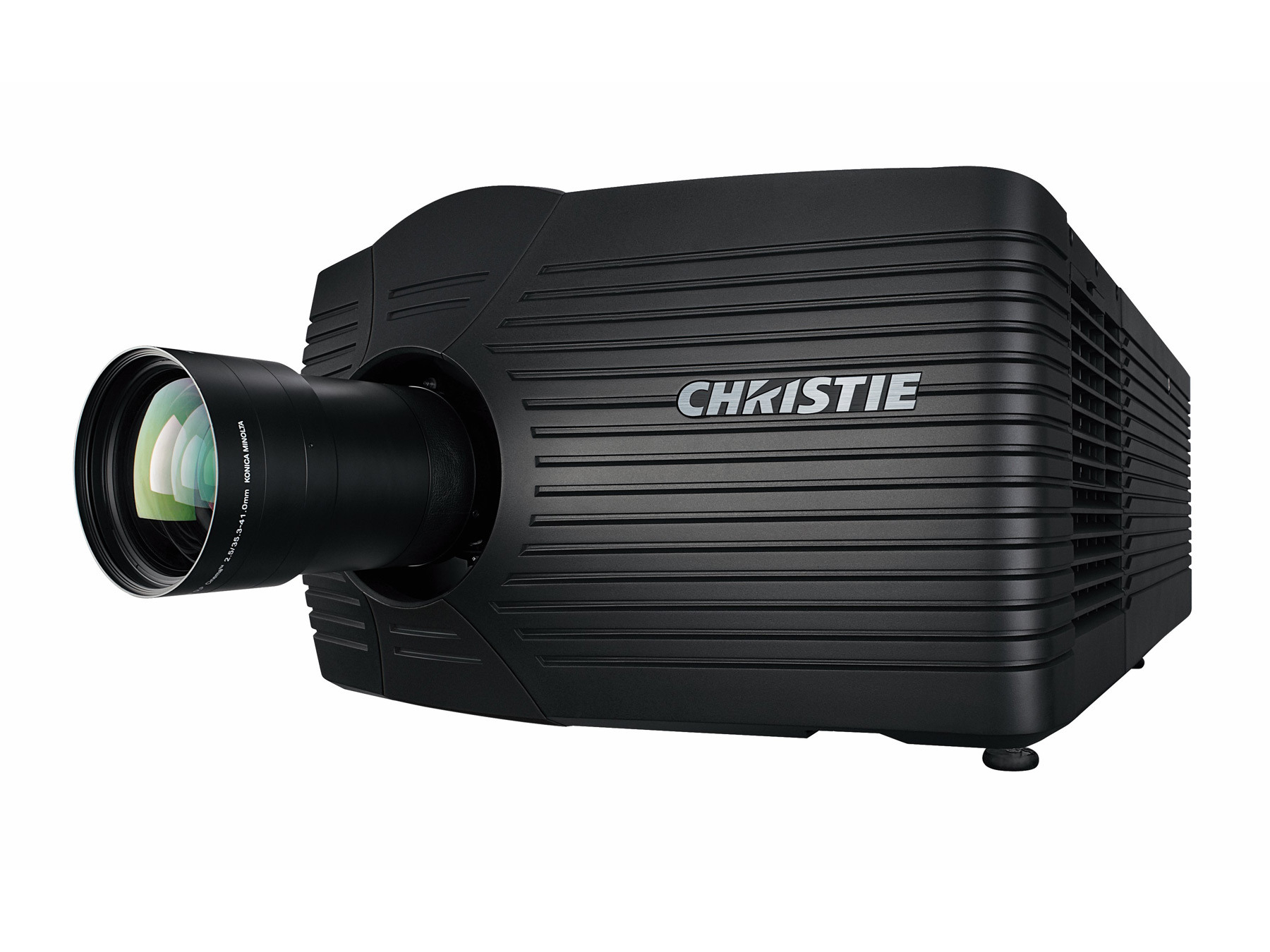

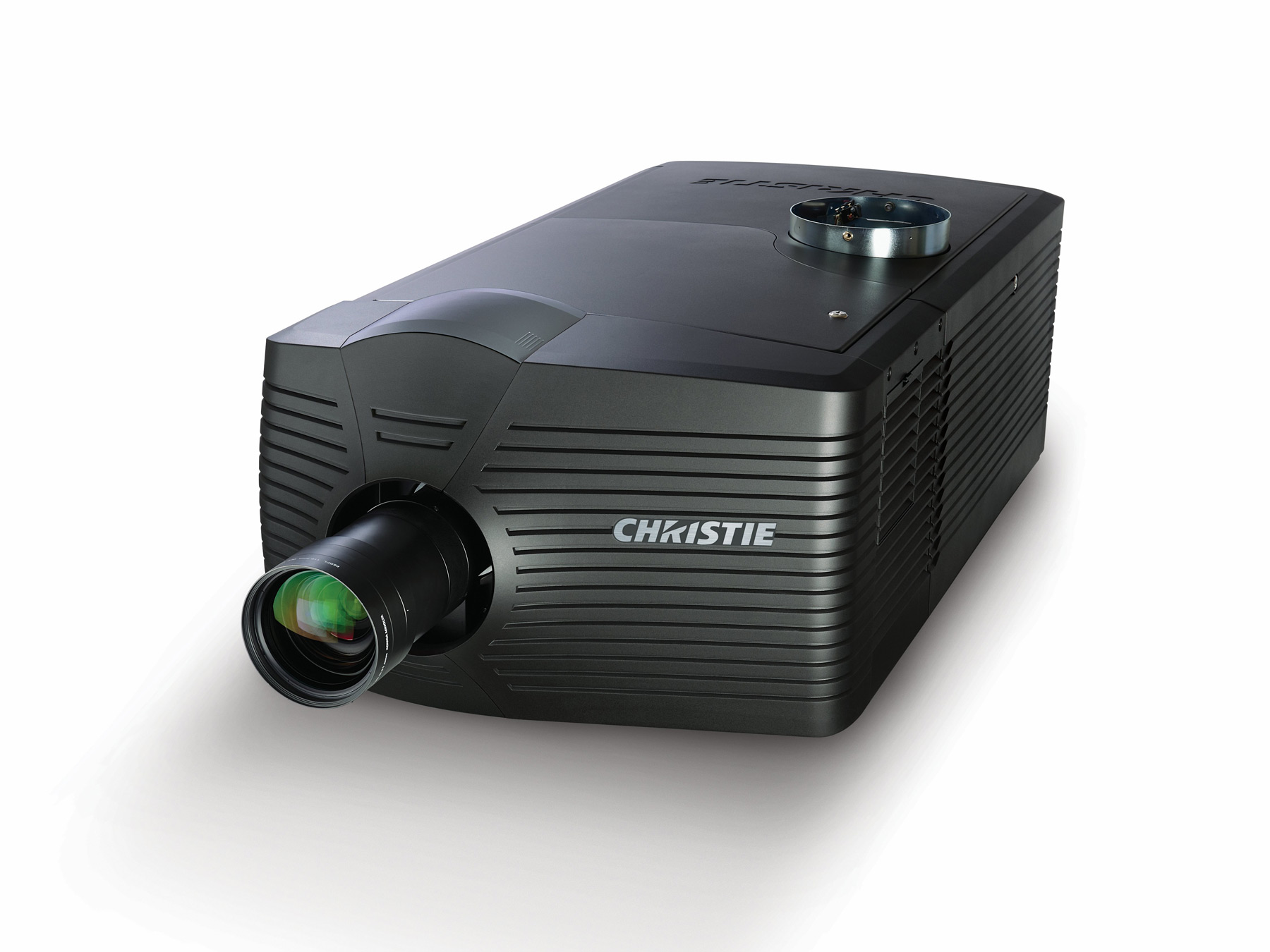

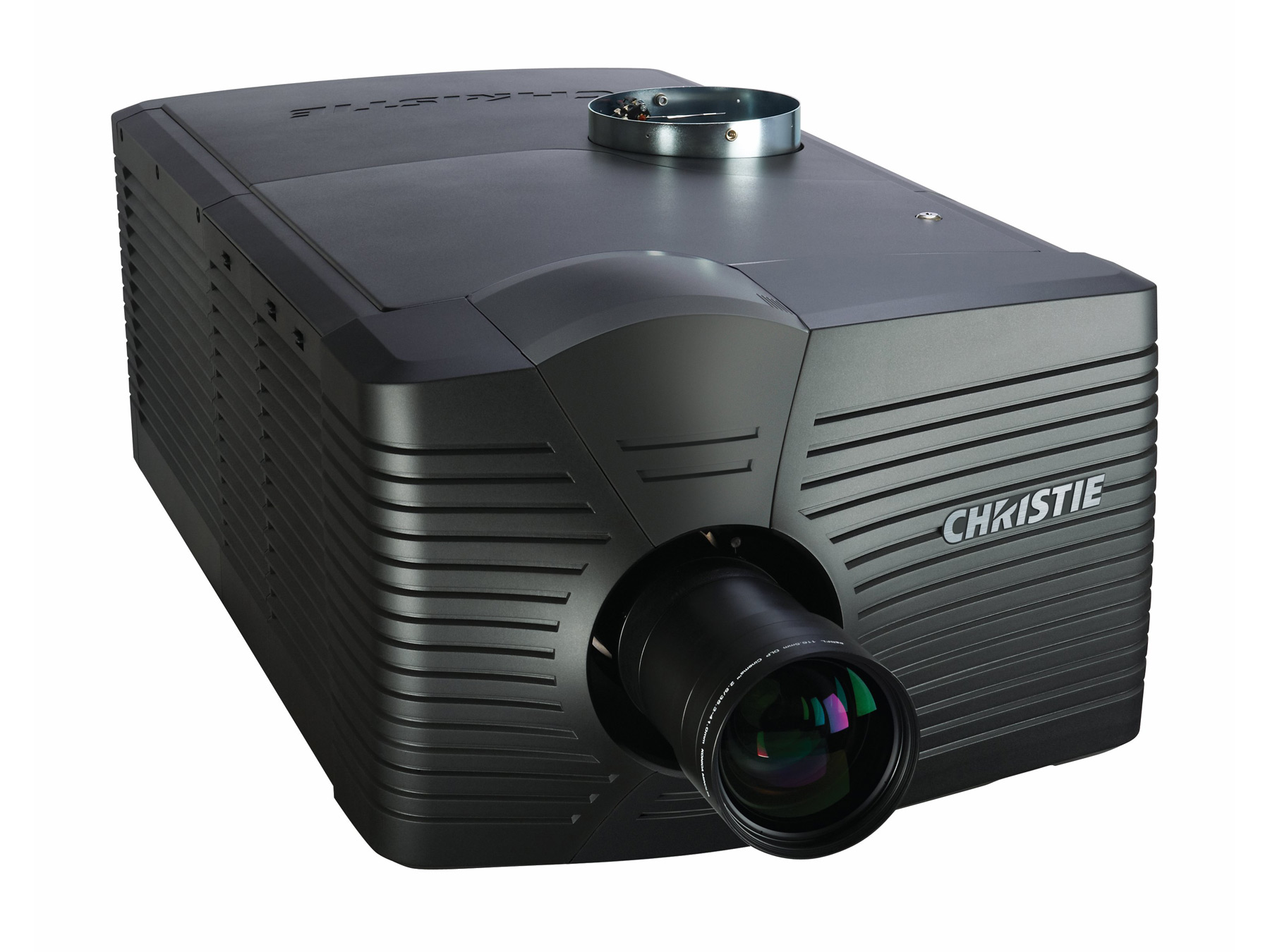

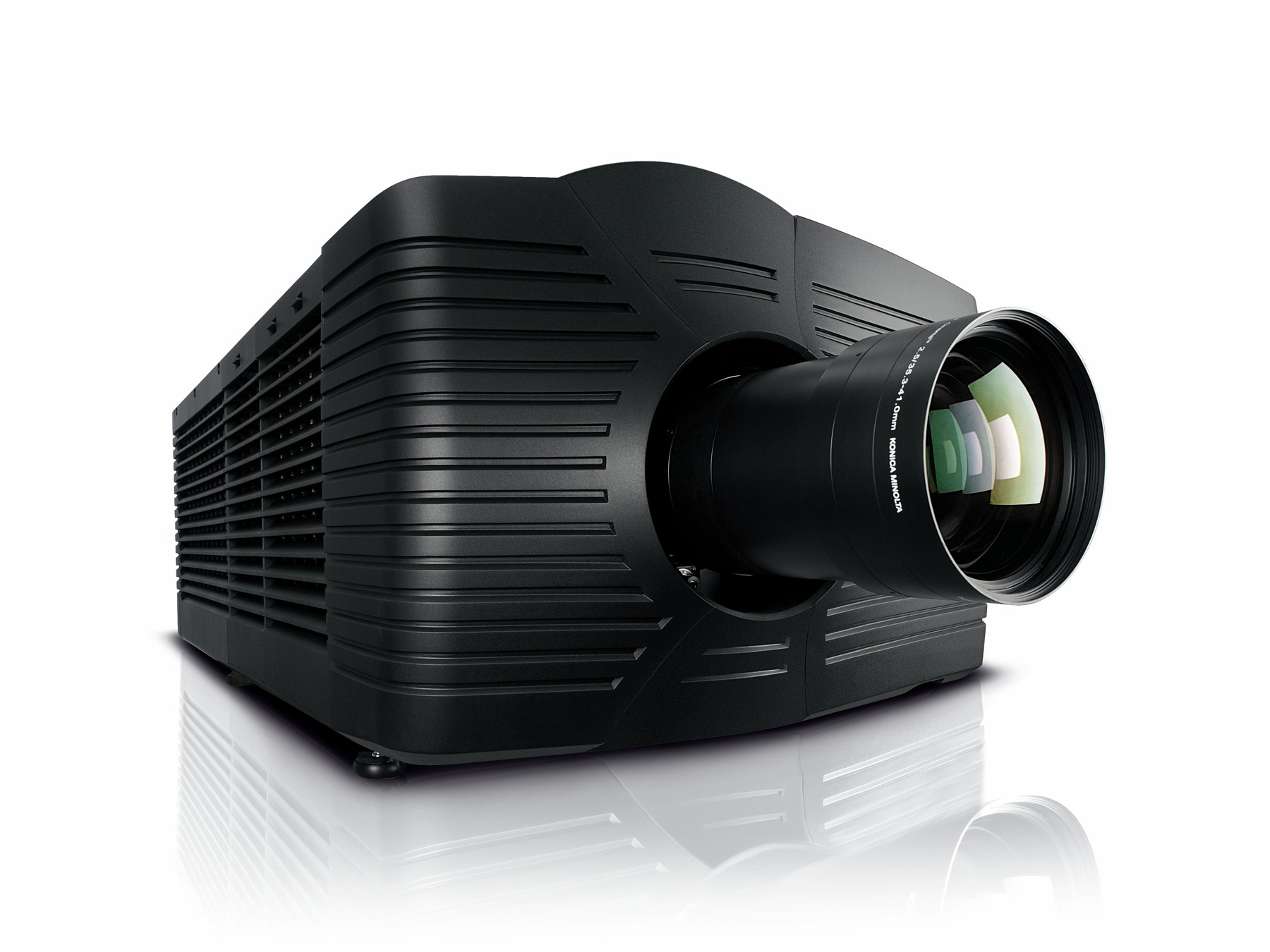

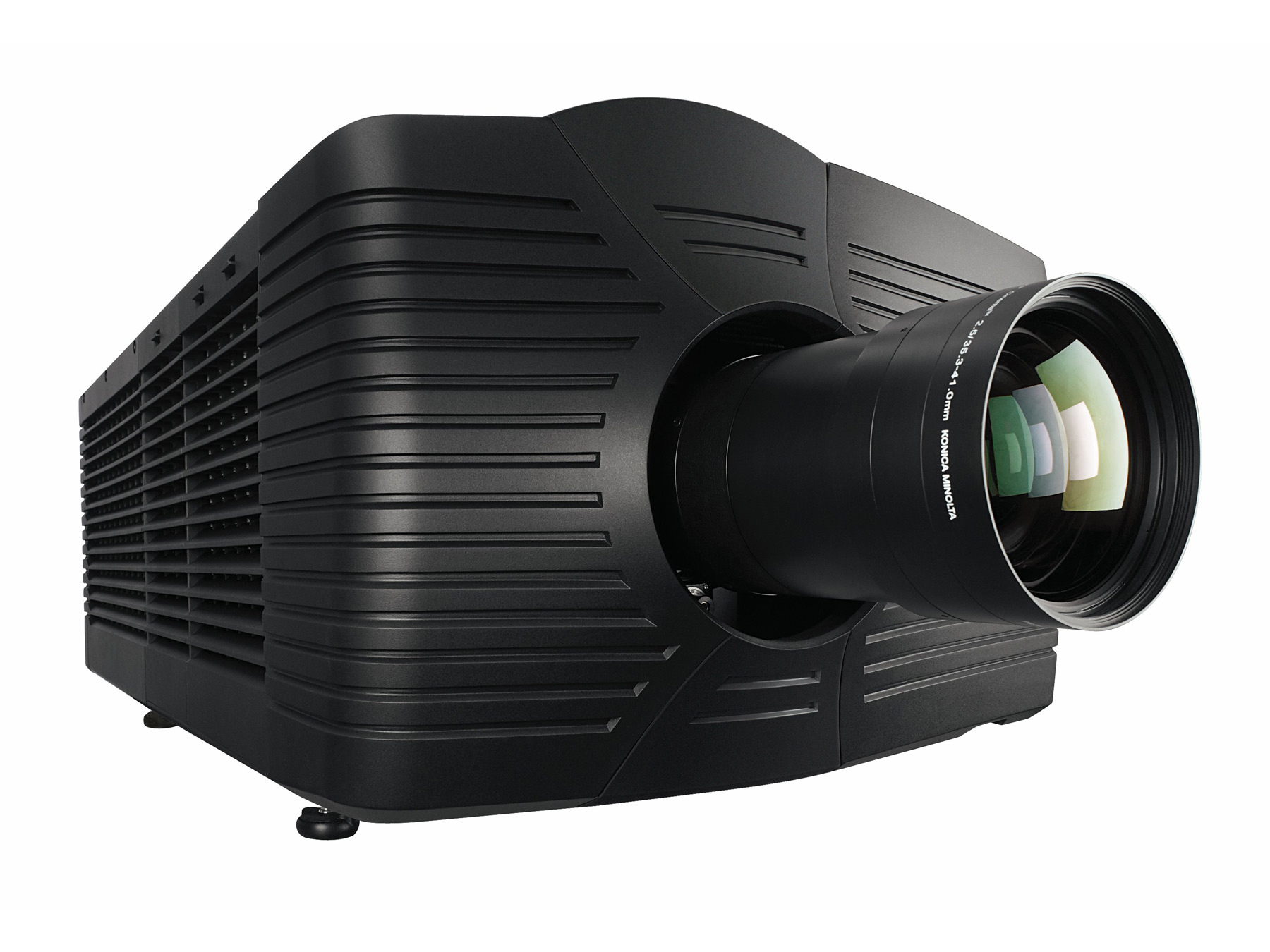

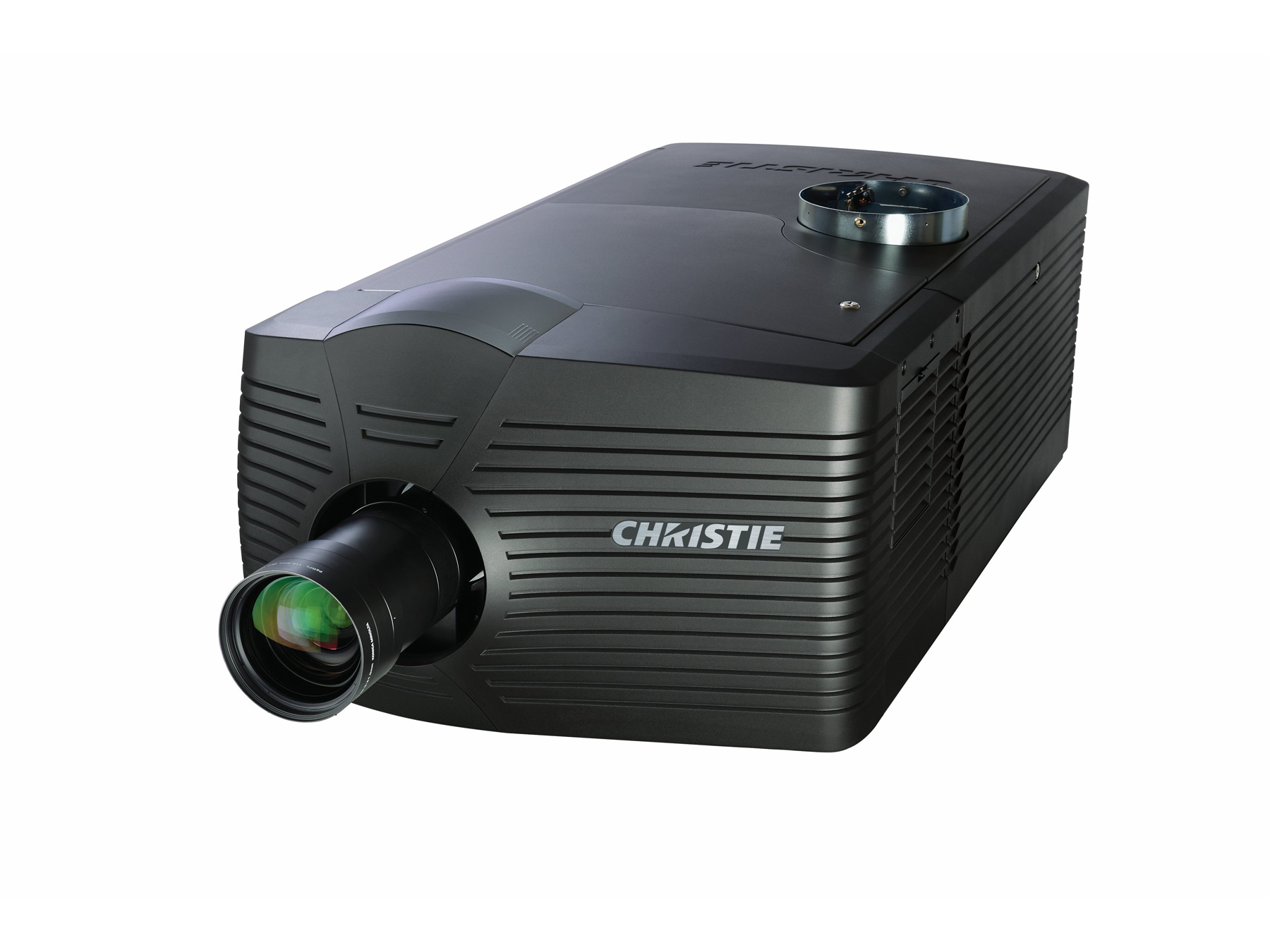

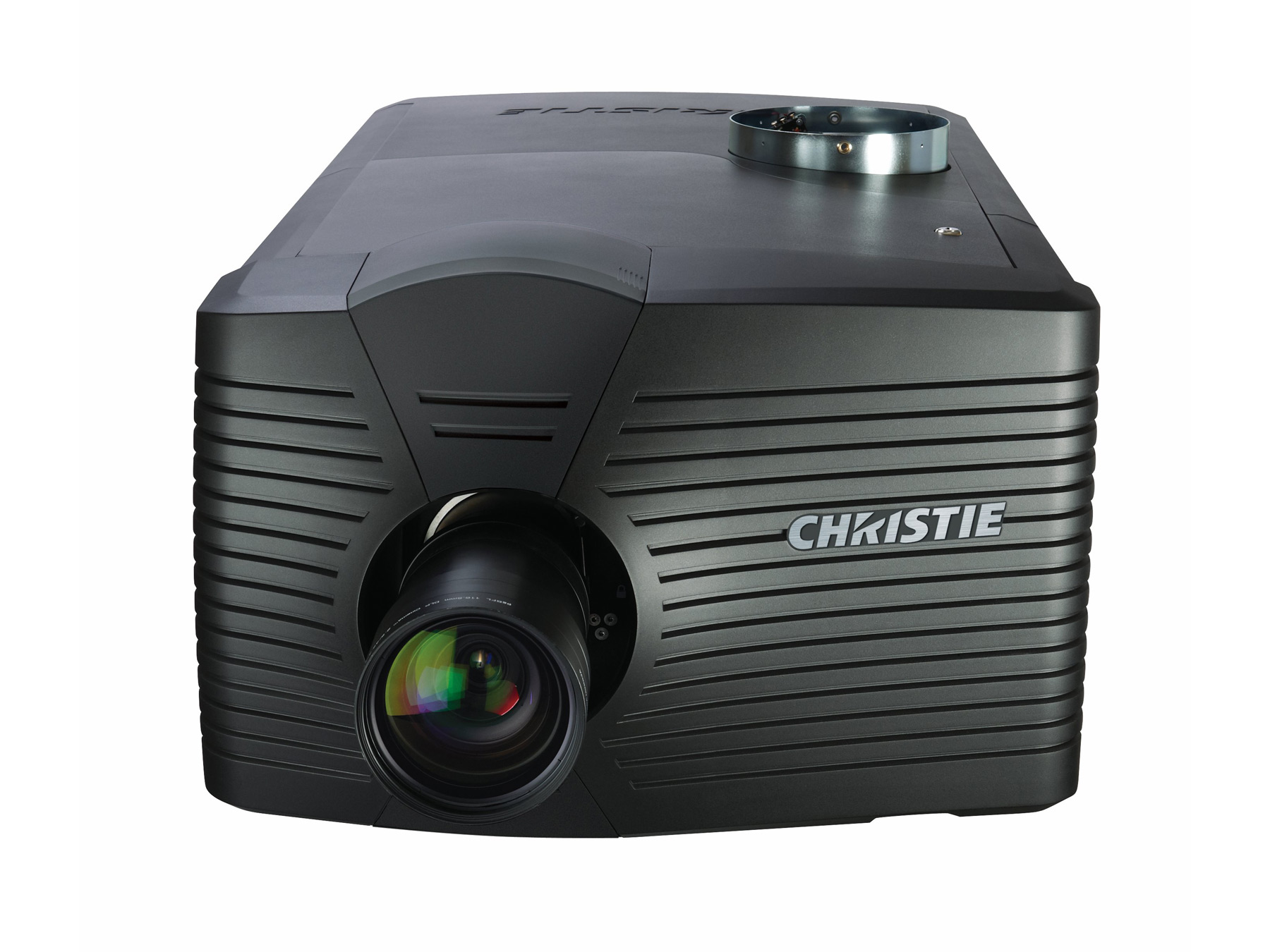

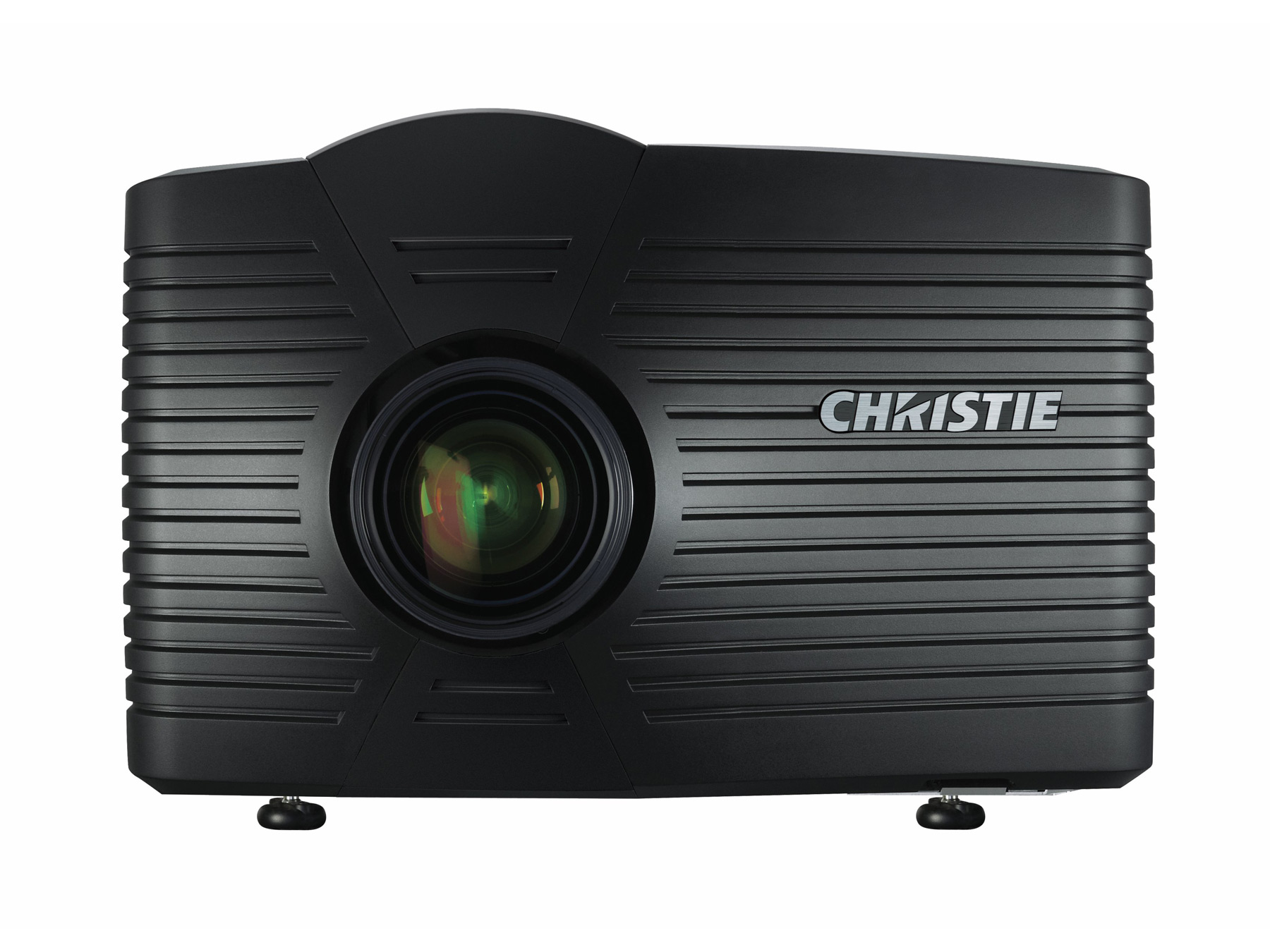

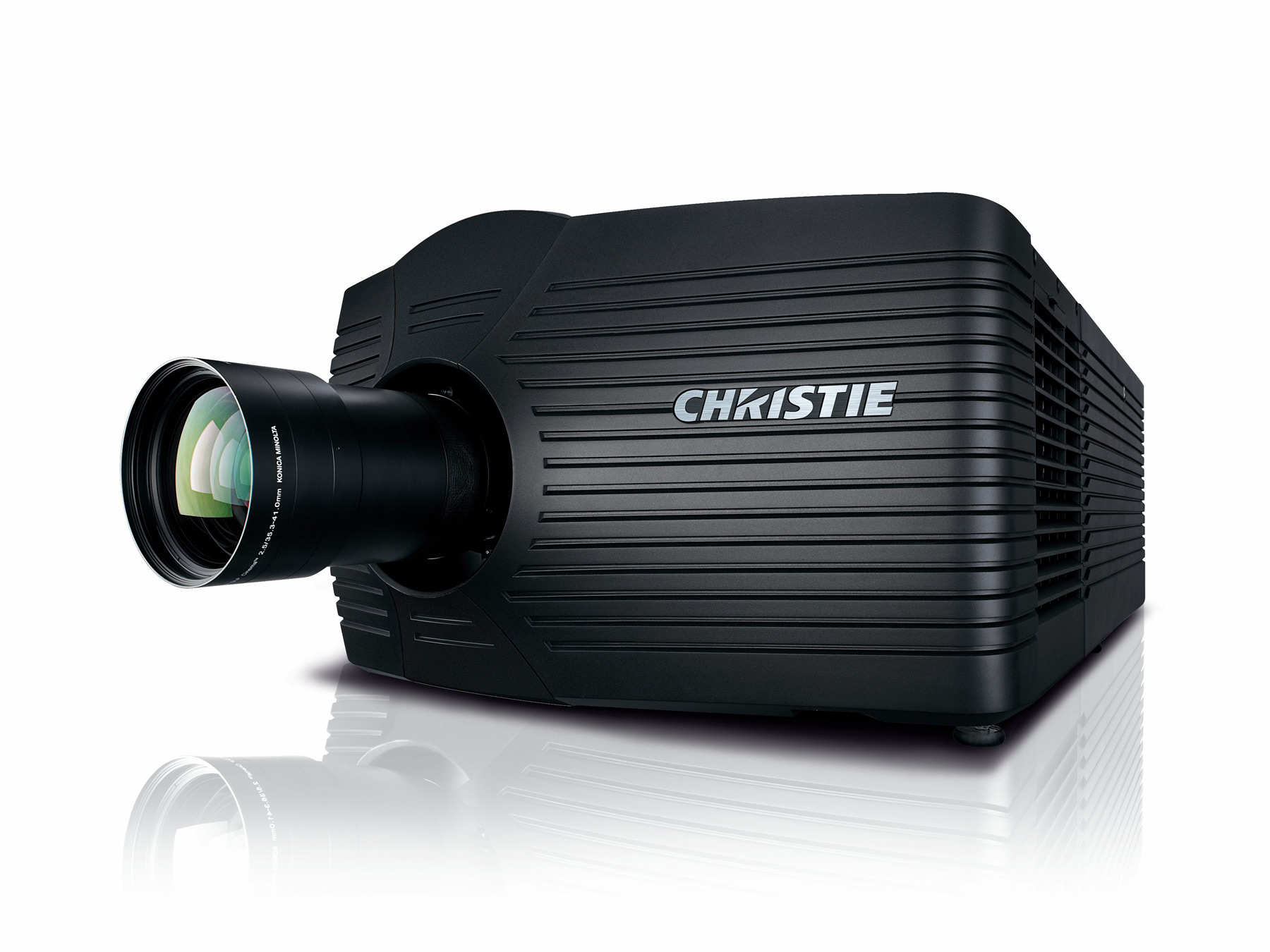

The Christie D4K3560 projector with 35,000 center lumens, has native 4K (4096 x 2160) resolution. It offers ultra-realistic images, higher brightness and smoother video at 60Hz, thanks to new and unique Christie TruLife™ electronics – a quantum leap in video-image processing that boasts a breakthrough in high frame rate and high-resolution video projection.
This projector's superior 3DLP® performance and durability make it ideal for large applications such as amusement parks, auditoriums, casinos, classrooms, museums, planetariums, theaters and virtual design centers.
With the Christie D4K3560 you get:
- 4 times the resolution of 2K
- 3DLP technology for longer life and richer color
- High frame rate 60Hz
- High brightness
- Flexible input options
- Cleanable optical engine
Depending on your application needs, there are different Christie D4K3560 lamp powers to choose from. And, the motorized lens mount, user-replaceable lamps and field-alignable DMDs ensure that set up is fast, and maintenance time and costs are reduced.
Capture your audience’s attention with precise detail and vibrant life-life images, with a projector designed to help you put on a breathtaking show.
Choose the Christie D4K3560, backed by Christie’s industry-leading warranties, service and support.
Specifications
- 35,000 center lumens
- 2000:1 contrast ratio
Brightness
- - 35,000 center [32,500 ANSI] lumens - 6.0 kW lamp
- - 29,000 center [27,000 ANSI] lumens - 4.5 kW lamp
- - 19,500 center [18,000 ANSI] lumens - 3.0 kW lamp
- - 13,000 center [12,000 ANSI] lumens - 2.0 kW lamp
Display
- 3DLP 1.38” DMD
- Native 4K (4096 x 2160)
Lamp
- - Xenon bubble, user-replaceable bulb1
- - 6.0kW lamp CDXL-60 - 750 hours
- - 4.5kW lamp CDXL-30 - 900 hours
- - 3.0kW lamp CDXL-20 - 2,500 hours
- - 2.0kW lamp CDXL-20 - 3,500 hours
Signals
- Standard
- - 2x Dual 3G HD-SDI input card
- - 2x Twin display port input card
- Optional
- - Dual link DVI input card
- - Twin HDMI input card
- Signal inputs
- - Accepts 4K (4096x2160) and Quad HD (3840x2160)
- - 4 x DisplayPort 1.1a
- - 4K/Quad HD - 24 to 60Hz 4:4:4 8-/10-bit
- - 4K/Quad HD - 24 to 60Hz 4:2:2 8-/10-/12-bit
- - 2 x DisplayPort 1.1a
- - 4K/Quad HD - 24 to 60Hz 4:4:4 8-/10-bit
- - 4 x HD SDI
- - 4K/Quad HD - 24 to 30Hz 4:4:4 12-bit (4 x 3G HD-SDI)
- - 4K/Quad HD - 24 to 30Hz 4:2:2 12-bit (4 x 3G HD-SDI)
- - 4K/Quad HD - 24 to 30Hz 4:2:2 10-bit (4 x HD-SDI)
- - 4K/Quad HD - 50 to 60Hz 4:2:2 10-bit (4 x 3G HD-SDI)
- - 4 x DVI
- - 4K/Quad HD - 24 to 60Hz RGB 8-bit
- - 2 x DVI (Dual Link)
- - 4K/Quad HD - 24 to 60Hz RGB 8-bit
- Signal outputs- loop-out
- - Dual 3G HD-SDI input card, twin DisplayPort input card
Inputs, control and networking
- - RS-232
- - Ethernet (10/100) RJ45 with ChristieNET™ connectivity
- - Detachable LCD control module
Due to constant research, specifications and features are subject to change without notice.
1 - User-replaceable bulb
2 - Some features may not be functional on initial product shipments but will be enabled via software upgrade when available.
